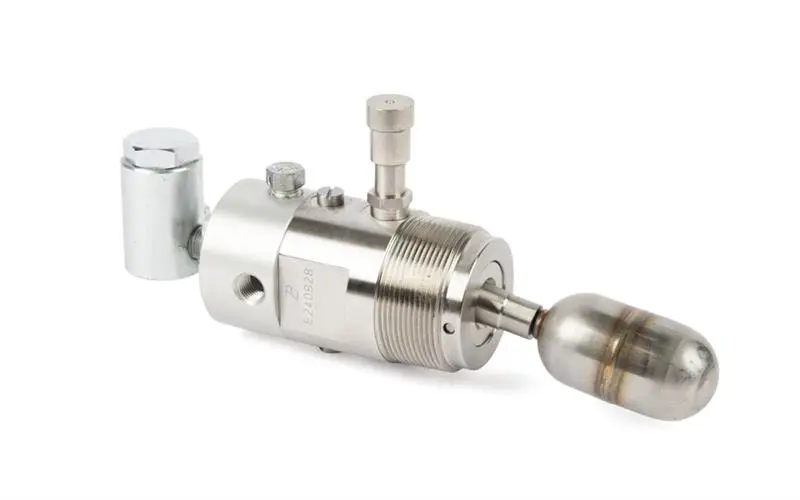

CUAS6NC
Build & Save a Quote
We'll get you options, pricing, and anything else you need.
Anything we can do to help?
Talk to a specialist at (405) 525-4298 or fill out a quick product message form.
Tech Specs
| Type | Value |
|---|---|
| Connection Size: | 2 " |
| Connection Type: | Male NPT |
| Body Material: | 316 SS |
| NACE MR0175: | NACE MR0175 Certificate included |
| Pilot Type: | Vent |
| Pilot Output: | Direct (Field Reversible to Indirect) |
| Max Working Pressure: | 2000 psig |
| Displacer Orientation: | Horizontal |
| Operation: | Pneumatic |
| Catalog Page: | 08:50.1 |
| Float Material: | Stainless Steel |
| Additional Info: | Stainless Steel Filter Body |
| Weight: | 6 lbs |
Product Videos
Compatible Kits and Tools
| Type | Product Code | |
|---|---|---|
| Repair Kit: | RZX | + ADD TO QUOTE |
Downloads & Updates
Documents
Other Documents
Frequently Asked Questions
Yes, the CUAEXT has a float arm that is 3" longer.
They function the same, but CUB was designed to operate using much lower supply gas pressure, down to ounces.
The CUB also works much better in cold temperatures because it has no diaphragm, which otherwise could get stiff in extreme cold, limiting function.
The trade-off for these benefits is that the flow rate capacity is much lower. See flow rates in the technical specifications document.
Still have a question? Send us a quick product message to get help from our team.
